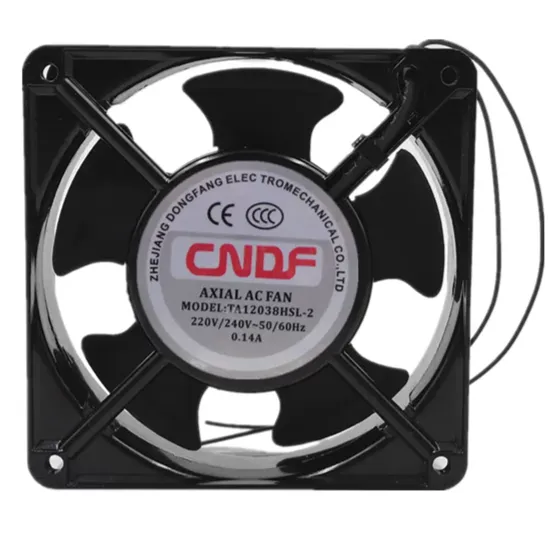

AC Axial Panel Cooling Fan TA12038HSL-2 - 120 mm mains-voltage fan, 108 CFM of direct 220-240 V cooling
The CNDF TA12038HSL-2 is a 120 x 120 x 38 mm axial cooling fan that runs straight off a 220-240 V, 50/60 Hz supply - no driver, no DC power pack, just a two-wire connection. It moves 87 CFM at 50 Hz and 108 CFM at 60 Hz, enough airflow to pull the heat out of a packed control panel, drive cabinet or machine housing and keep components at a safe working temperature. The industry-standard 12038 frame drops straight into existing cut-outs, making it an easy replacement for a failed panel fan as well as a solid choice for new builds. Noise stays at a workable 46.5 dBA at 50 Hz.
- 120 x 120 x 38 mm standard "12038" frame - direct fit for most panel cut-outs
- Runs directly on 220-240 V AC, 50/60 Hz - two-wire connection, no external driver
- Air flow: 87 CFM at 50 Hz / 108 CFM at 60 Hz; speed 2500 / 2900 rpm
- Low power draw: 25 W at 50 Hz (0.14 A), 20 W at 60 Hz (0.12 A)
- Static pressure 0.23 / 0.28 inch-H2O; noise 46.5 / 52.6 dBA; net weight 515 g
All brand names, trademarks, logos and part numbers are the property of their respective owners and are used for identification and reference only; we are not an authorized distributor or agent of the manufacturer unless expressly stated otherwise.
The CNDF TA12038HSL-2 is a 120 x 120 x 38 mm axial cooling fan that runs straight off a 220-240 V, 50/60 Hz supply - no driver, no DC power pack, just a two-wire connection. It moves 87 CFM at 50 Hz and 108 CFM at 60 Hz, enough airflow to pull the heat out of a packed control panel, drive cabinet or machine housing and keep components at a safe working temperature. The industry-standard 12038 frame drops straight into existing cut-outs, making it an easy replacement for a failed panel fan as well as a solid choice for new builds. Noise stays at a workable 46.5 dBA at 50 Hz.
- 120 x 120 x 38 mm standard "12038" frame - direct fit for most panel cut-outs
- Runs directly on 220-240 V AC, 50/60 Hz - two-wire connection, no external driver
- Air flow: 87 CFM at 50 Hz / 108 CFM at 60 Hz; speed 2500 / 2900 rpm
- Low power draw: 25 W at 50 Hz (0.14 A), 20 W at 60 Hz (0.12 A)
- Static pressure 0.23 / 0.28 inch-H2O; noise 46.5 / 52.6 dBA; net weight 515 g
