Delta FFB0924EHE 92 mm 24 V DC High-Static-Pressure Axial Fan - 110 CFM, 4800 rpm, ball bearing, 70,000 h life

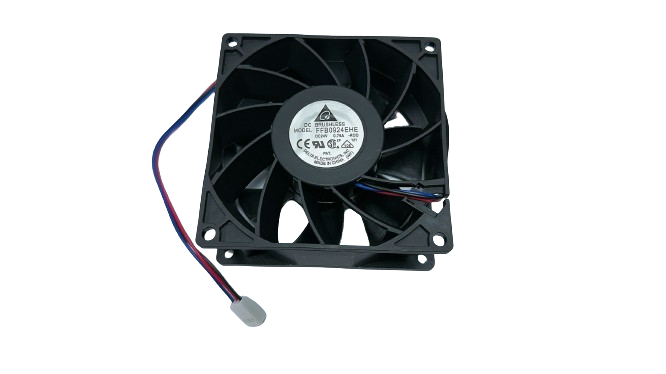

The Delta FFB0924EHE is a 92 x 92 x 38 mm DC brushless axial fan from Delta's FFB high-static-pressure series, built for equipment that has to move real air through a restricted path. At 4800 rpm it delivers 110.18 CFM against 16.90 mmH2O of static pressure, so it keeps pushing where a thinner fan would stall against dense heatsink fins, filter mats or a tightly packed cabinet. It runs from a 24 V DC supply over a wide 14.0-27.6 V window and terminates in two lead wires. Dual ball bearings and a rated life of 70,000 hours at 40 C make it a sound choice for continuous duty in inverters, drives, welding power supplies, server and telecom cabinets and industrial control panels.
Key features:
- High static pressure: 110.18 CFM (3.120 m3/min) at 16.90 mmH2O
- 24 V DC, wide 14.0-27.6 V operating window, 0.50 A / 12 W
- 4800 rpm, 55 dB(A), ball-bearing construction
- 92 x 92 x 38 mm deep frame, 198 g, -10 C to +60 C
- 70,000-hour rated life at 40 C - CE, UL/cUL, CSA and VDE marks
